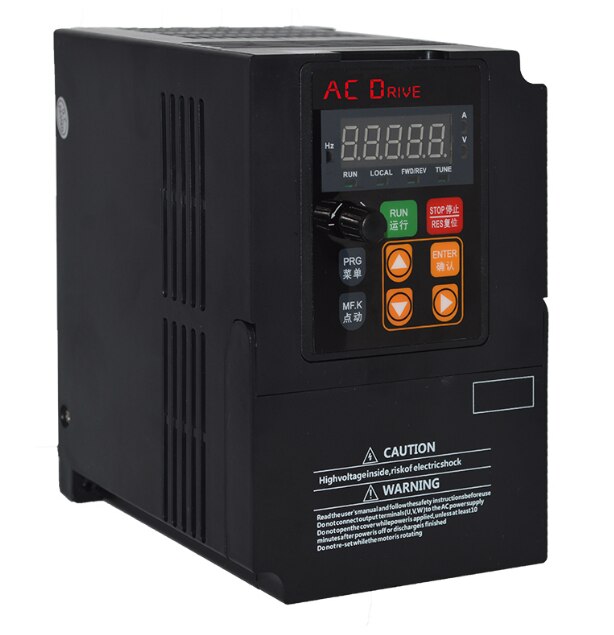

220V 0.75kw/1.5kw/2.2kw Single phase input and 220v 3 phase output AC drive/Frequency converter/variable speed drive

Product Introduction

220v Single Phase input and 220v 3 phase output vector Frequency converter/variable speed drive

1.220v 0.75kw type： Output Power:0.75kw Rated current:4.5A
220v 1.5kw type： Output Power:1.5kw Rated current:7A
220v 2.2kw type： Output Power:2.2kw Rated current:10A
2.Rated Frequency :50HZ/60HZ
3.Output Frequency Range:0~300Hz
4.Input Voltage Range:Single phase (1 phase) 220V±15%
5.Output Voltage Range:3 phase 0-220V±15%
6.Control way: Open loop vector control(SVC) V/F control
7.Starting Torque: G type machine:0.5Hz/150%( SVC)
8.Basic Function: Speed tracking,PID control,auto speed compensation,AVR,Torque control.time control, multi-speed choice etc
9.Digital Display/Status ldicator: Display frequency.speed,current.voltage ,forward/reverse,fault etc
10.Main function: Control and adjust the speed of the ac motor

Packing:1 piece frequency inverter;

1 piece English Operating Manual

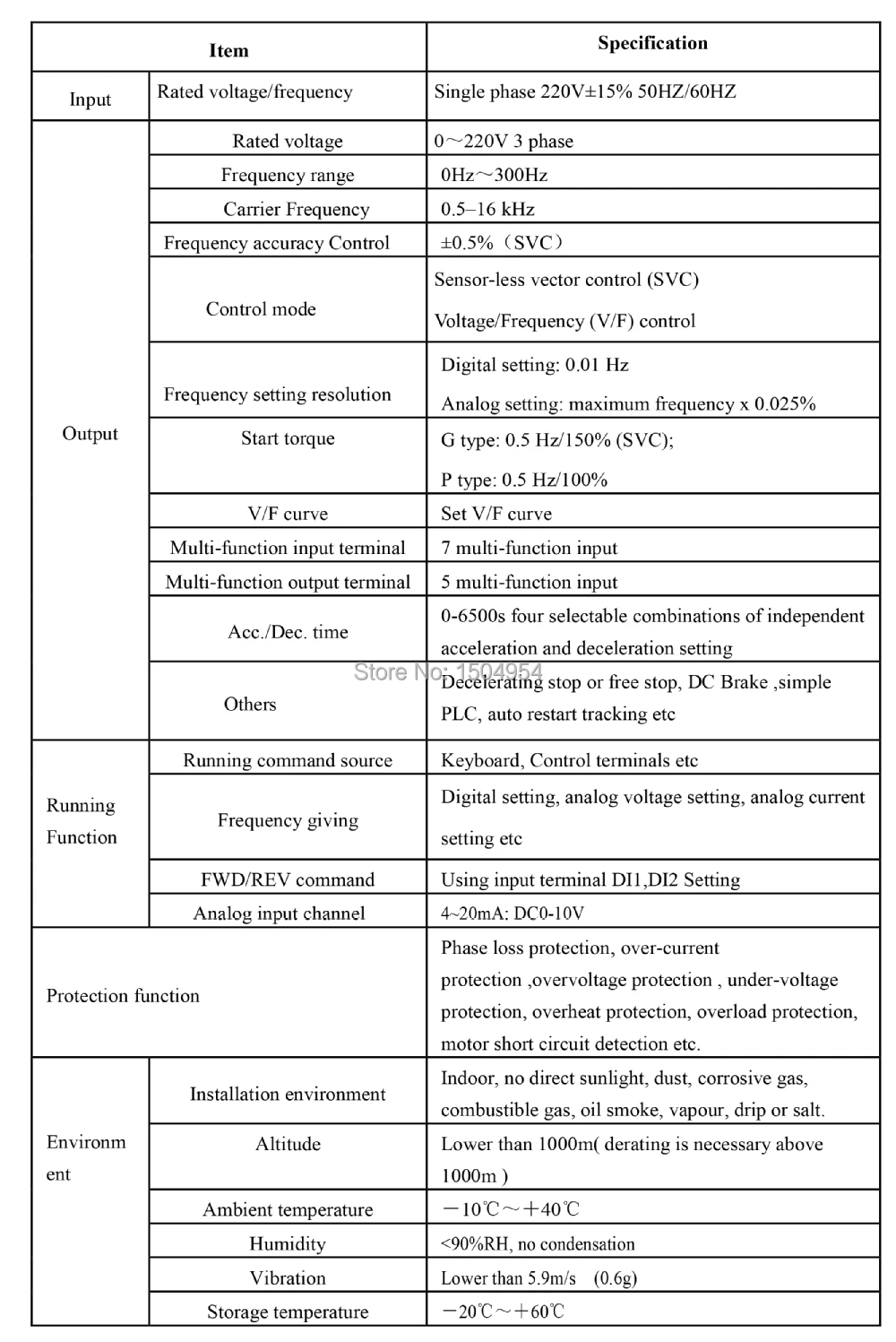

Spefificaition
